■概述：
DYC-JQ型电磁真空带充气压差阀是机械真空泵安全阀，安装于机械真空泵的进气口，并与泵同步开启和关闭。当
泵停止工作或电源突然中断时，阀门利用大气压力使阀板自动关闭，使真空系统保持真空并将大气充入泵腔内，从
而避免泵油逆向流动而污染真空系统。适用介质为纯净空气和非腐蚀性气体。
DYC-JQ electro-vacuum differential Pressure valve is a safely valve for mechanical vacuum pump. It is mounted
at the intake nozzle of mechanical vacuum pump, synchronously opened and closed with the pump. In case that
pump stops working or power supply is suddenly broken off, valve disc will be closed automatically under
atmospheric pressure, to keep the vacuum system vacuum and the air charged into pump cavity, thus to prevent
pump oil from reverse flow that can pollute the vacuum system. Applicable medium can be pure air or
noncorrosive gases.
■ 电磁真空带充气压差阀主要零件材料
Materials of Main Parts
阀体、阀盖、阀板：碳钢或铝合金
隔膜：丁腈橡胶加涤纶绸
Body, bonnet and disc: carbon steel or aluminium alloy
Diaphragm: NBR and terylene silk
CONSTRUCTION FIGHTS (mm)

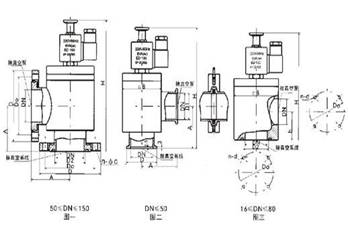

■ 电磁真空带充气压差阀外形及连接尺寸(mm)
Overall and Connection Dimensions(mm)

|
